ON-STATE VOLTAGE PROBE

ON-STATE VOLTAGE PROBE POWER　ELECTRONICS PRODUCTS ROGOWSKI COIL CURRENT TRANSFORMER OPTICAL CURRENT PROBE SHUNT RESISTOR

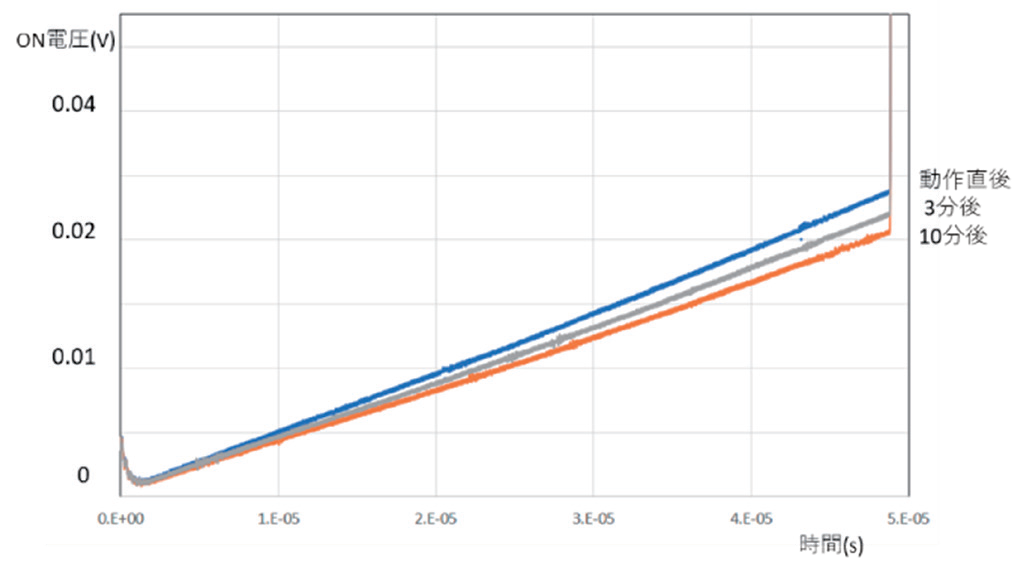

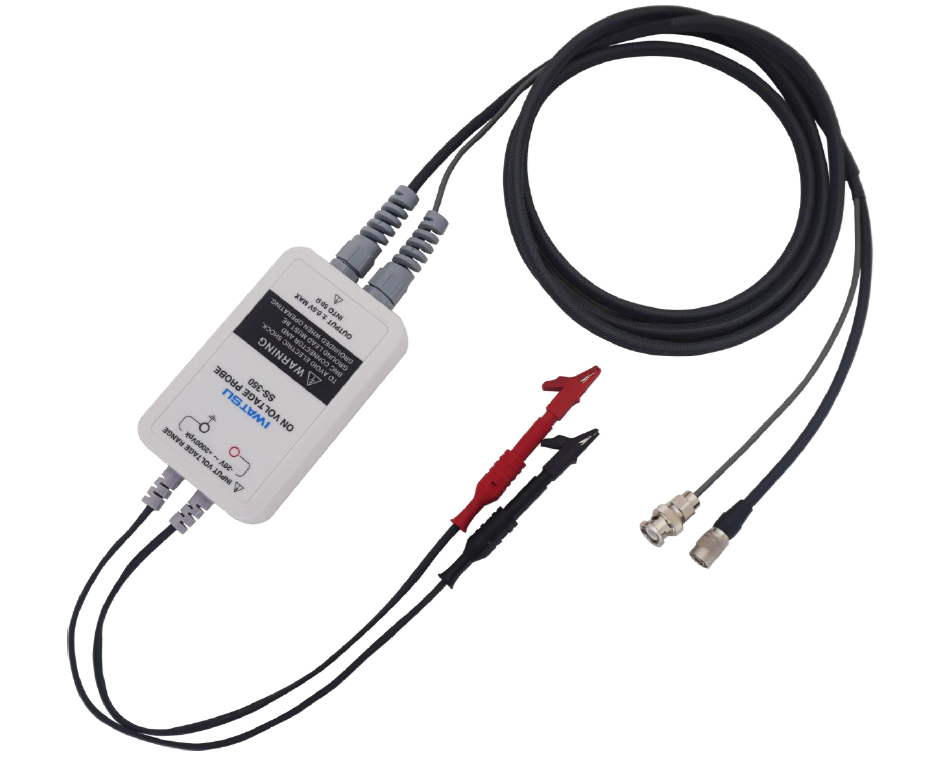

ON-STATE VOLTAGE PROBE

SS-350

■ Input voltage：2000V
■ Voltage Range：±1.5V/±2.5V/±5.5V
■ Controlled by DS-8000


POWER　ELECTRONICS PRODUCTS

ROGOWSKI COILS
CURRENT PROBES
  • BAND WIDTH: ~100 MHz
  • CURRENT: ~16000 A
OPTICAL FIBER PROBES
ROGOWSKI COILS
  • BAND WIDTH: DC-150 MHz
  • CURRENT: 140 A~

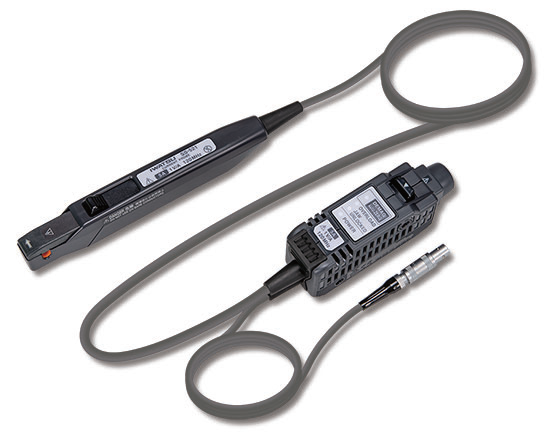

CURRENT PROBES
CURRENT TRANSFORMERS
  • BAND WIDTH: DC-120 MHz
  • CURRENT: ~500 Arms
CURRENT TRANSFORMERS
OPTICAL FIBER PROBES
  • BAND WIDTH: ~60 MHz
  • CURRENT: ~500 Arms
SHUNT RESISTOR
CALIBRATORS

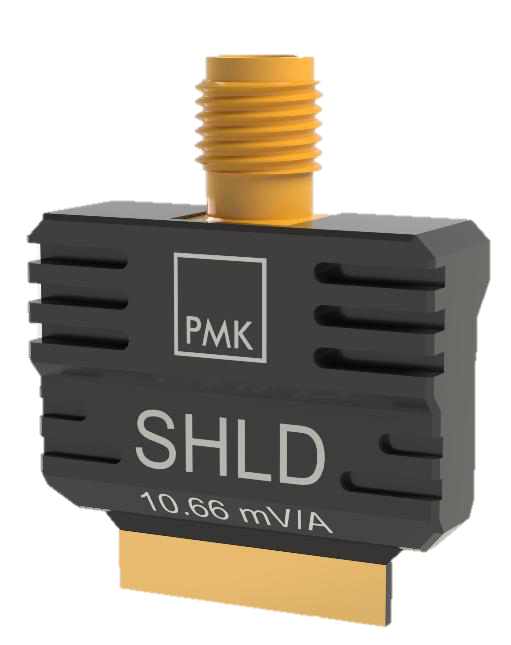

  • PMK, SHLD
  • 10.66 mV/A

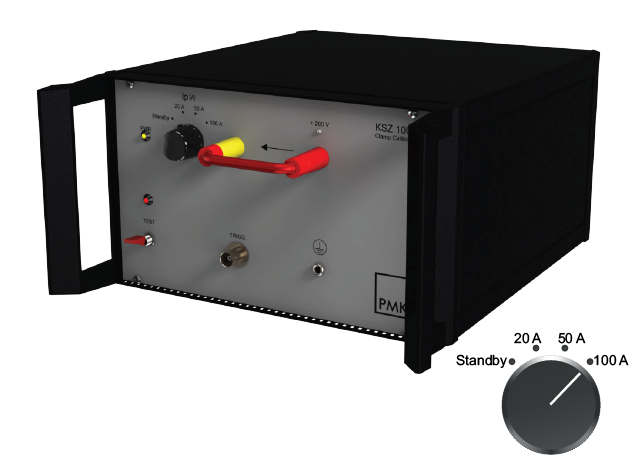

CALIBRATORS
SHUNT RESISTOR
  • Standby, 20A, 50A, 100A

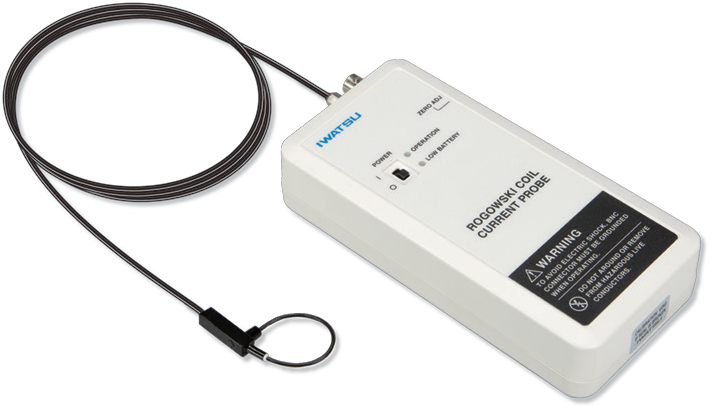

ROGOWSKI COIL

ROGOWSKI COIL

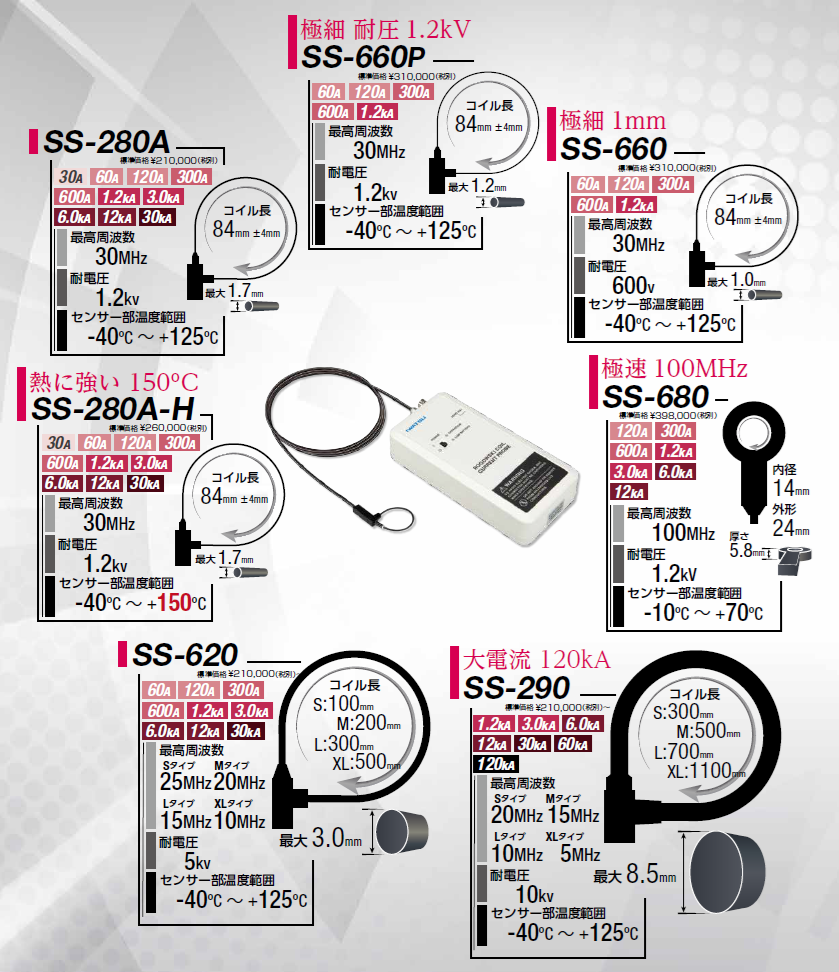

■ 7series of current sensors for each purpose
SS-68X High frequency type
SS-29X Standard type for big devices
SS-62X Medium size model
SS-28XA Mini size model
SS-28XA-H Wide temperature range
SS-66X Tiny size model
SS-66XP Tiny size model with high rated voltage
■ Good for IGBTs, Si / SiC power devices
■ Up to 120kA measurement
■ Up to 100MHz bandwidth

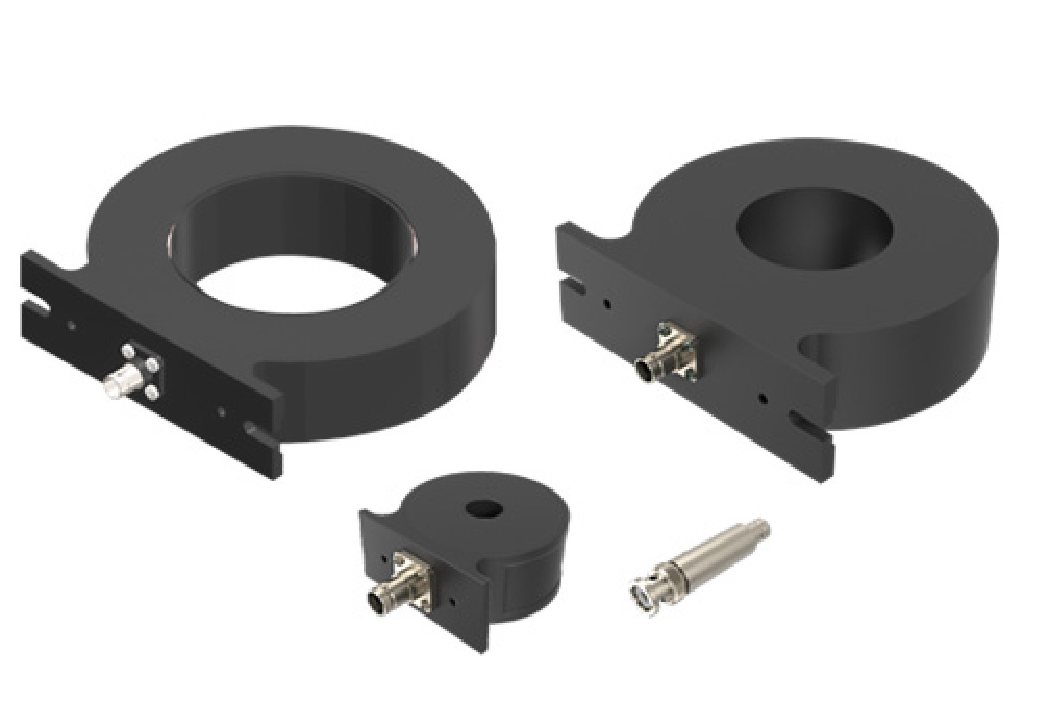

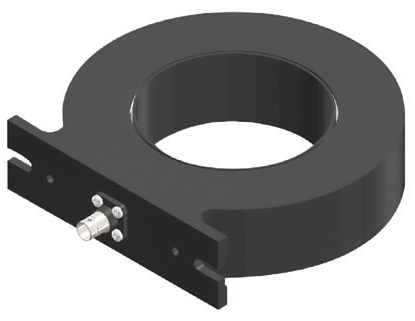

CURRENT TRANSFORMER

Precision Wide-Band Current Transformers LILCO® Series

■ Galvanic isolated measurements
■ High Accuracy from 0.004 Hz to 60 MHz
■ Ultra low Droop
■ Very high DC saturation currents
■ High I-t capability up to 24 A·s
■ Customized models on request

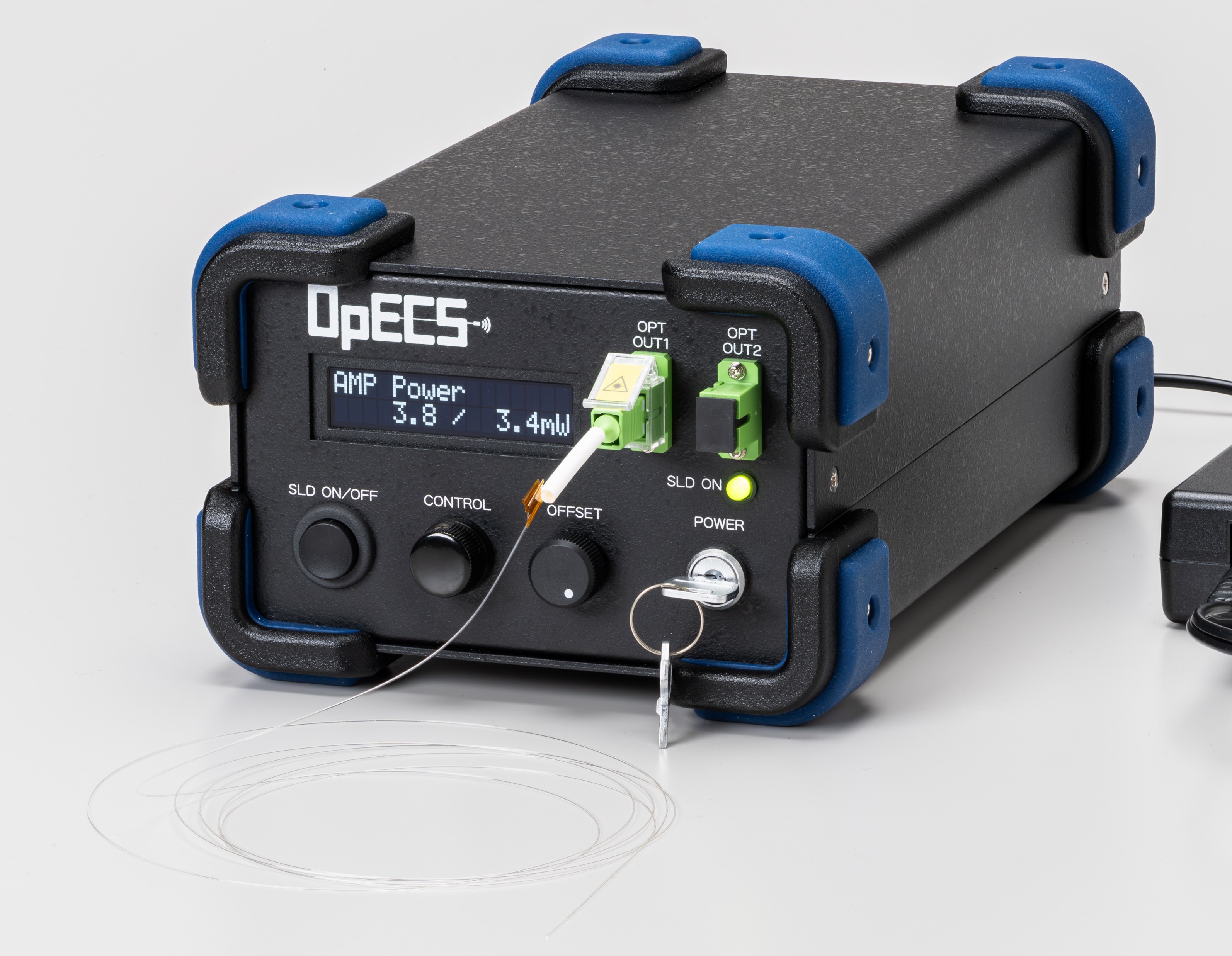

OPTICAL CURRENT PROBE

OpECS

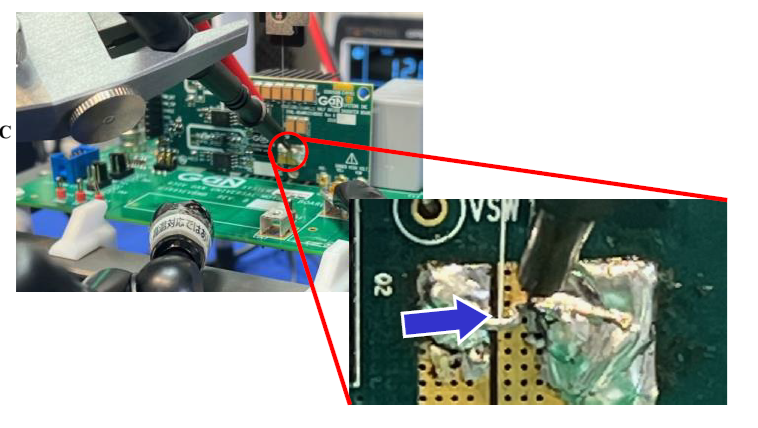

■ Ultra tiny senor head(Minφ0.45mm)
■ Non-contact measurement, good for low Ls measurement
■ Wide frequency band width DC-150MHz
■ Current range >140A
■ Can be used with any measurement equipment with 50Ω input


SHUNT RESISTOR

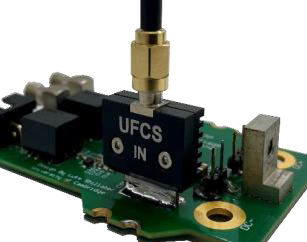

Ultra-Fast Current Shunt UFCS

■ >1GHz Bandwidth,
■ <200pH Insertion Inductance
■ Various sizes available:5mΩ–52mΩD
■ Good combination with Firefly
