FET PROBE SONIC

FET PROBE　SONIC FET PROBE　SONIC (Types and Acces... SONIC4000 POWER SUPPLY FET PROBE SONIC SERIES (COMING S...

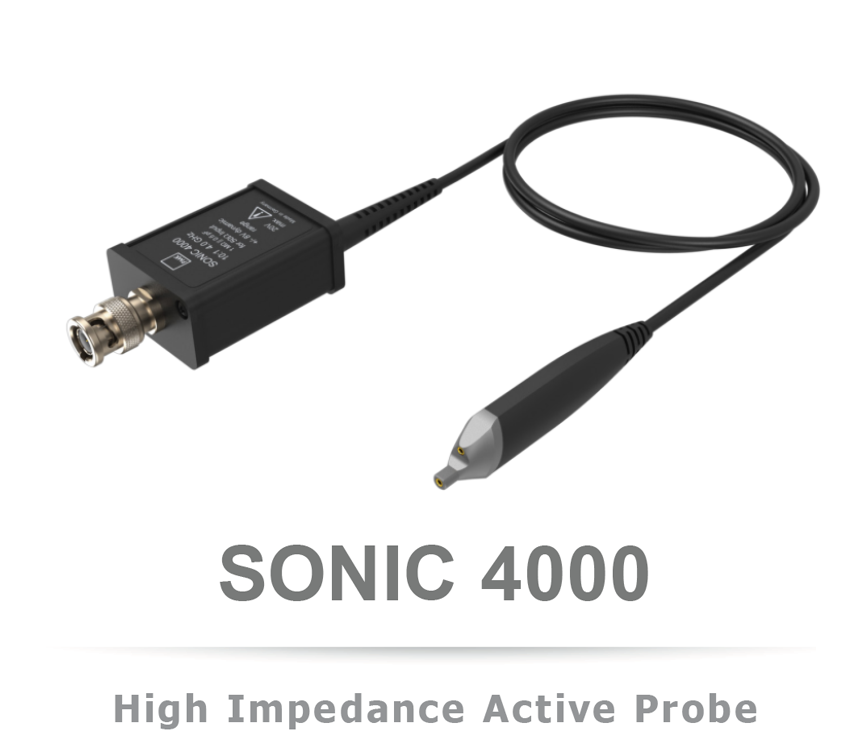

FET PROBE　SONIC


■ Frequency bandwidth　4GHz
■ Low input capacitance 0.6pF
■ Maximum rated voltage 20V
■ Connect with any scope(50ohm input)
■ Optional power supply is needed.

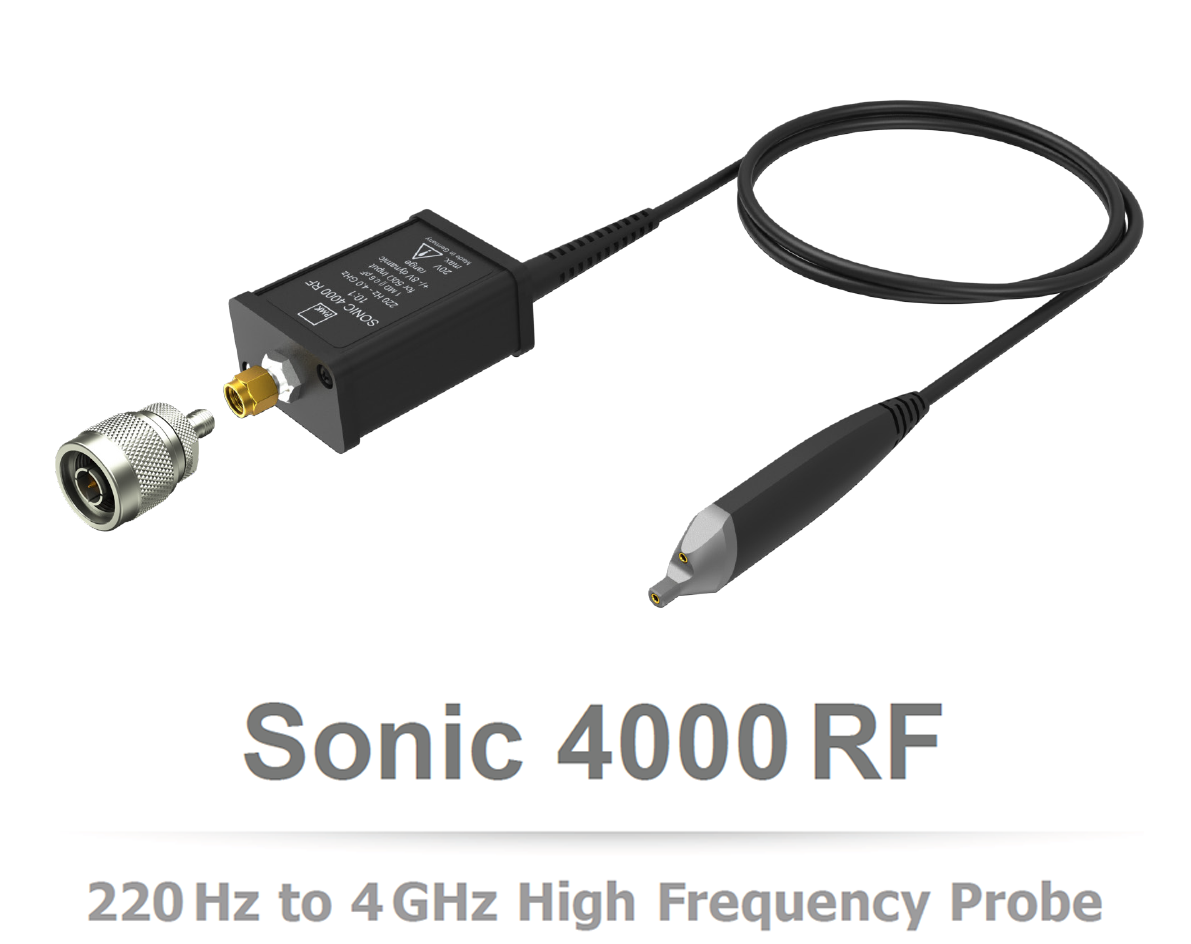

■ Suite with RF equipment（SONIC4000RF）
DC BLOCK and SMA connector.

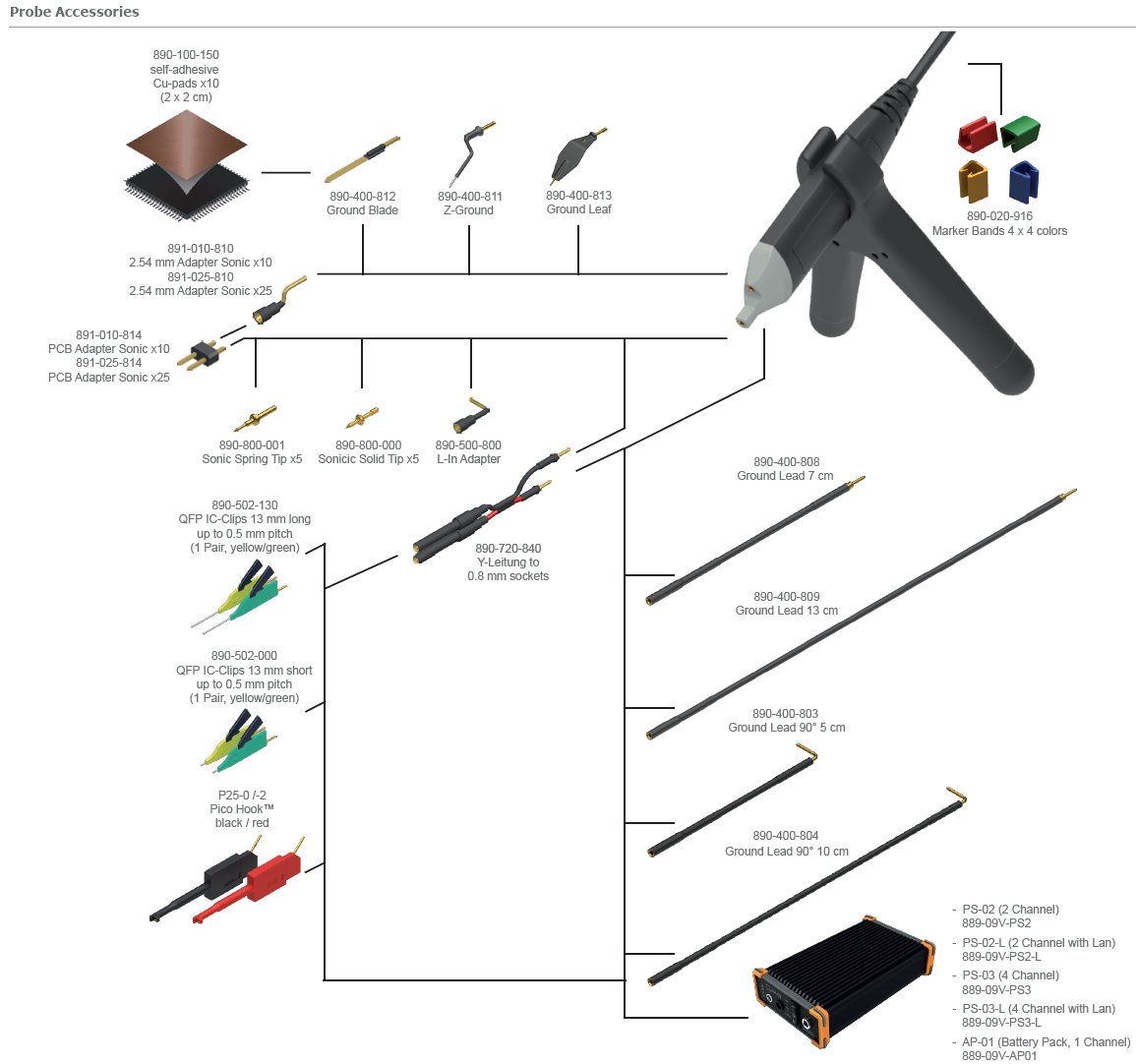

FET PROBE　SONIC (Types and Accessories)

slide_08_img_04.png slide_08_img_05.png

FET PROBE　SONIC (Competition of SONIC4000)

■ Frequency bandwidth　4GHz
■ Low input capacitance 0.6pF
■ Ultra Robust Non-destructive Input Voltage ±20V
■ Wide Input Dynamic Range ±8v
■ Connect with any scope(50ohm input)
■ Optional power supply is needed.
PS-02
■ ZS4000 = SONIC4000

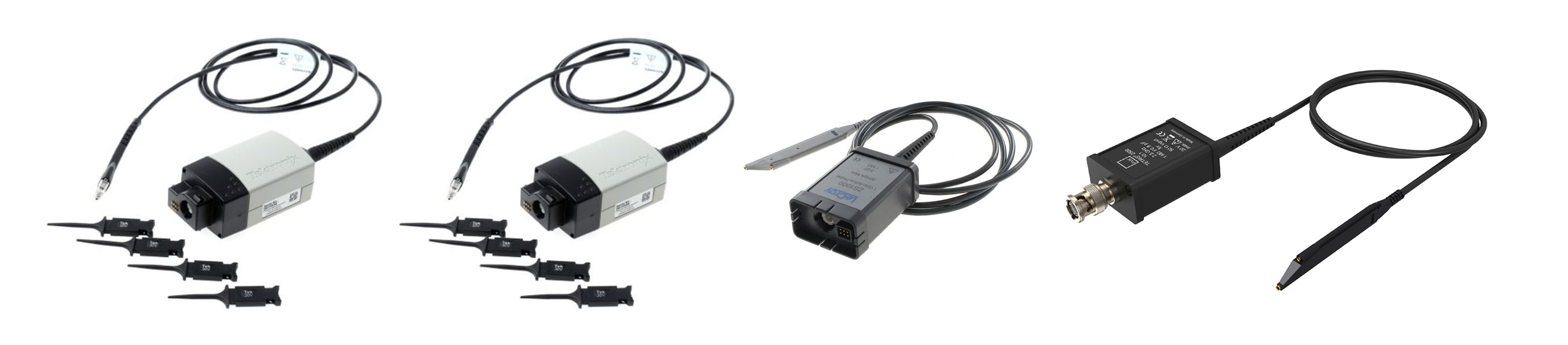

MAKER TEKTRONIX TEKTRONIX LECROY PMK
TYPE TAP3500 TAP4000 ZS4000 SONIC4000
BAND WIDTH 3.5GHz 4GHz 4GHz 4GHz
INPUT IMPEADANCE 40kΩ // 0.8pF以下 40kΩ // 0.8pF以下 1MΩ // 0.6pF 1MΩ // 0.6pF
VOLTAGE RANGE ±4V ±4V ±8V ±8V
CONNECTIVITY PROBE-BUS PROBE-BUS PROBE-BUS ANY-SCOPE

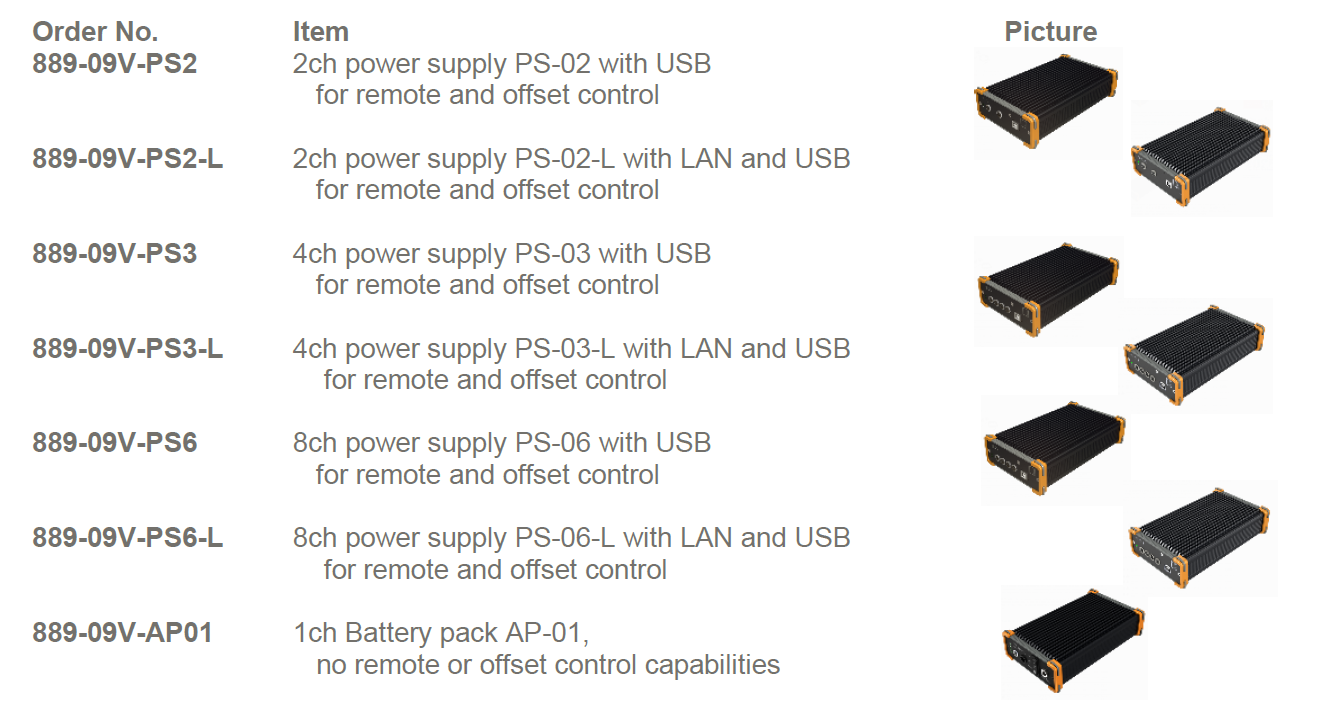

POWER SUPPLY

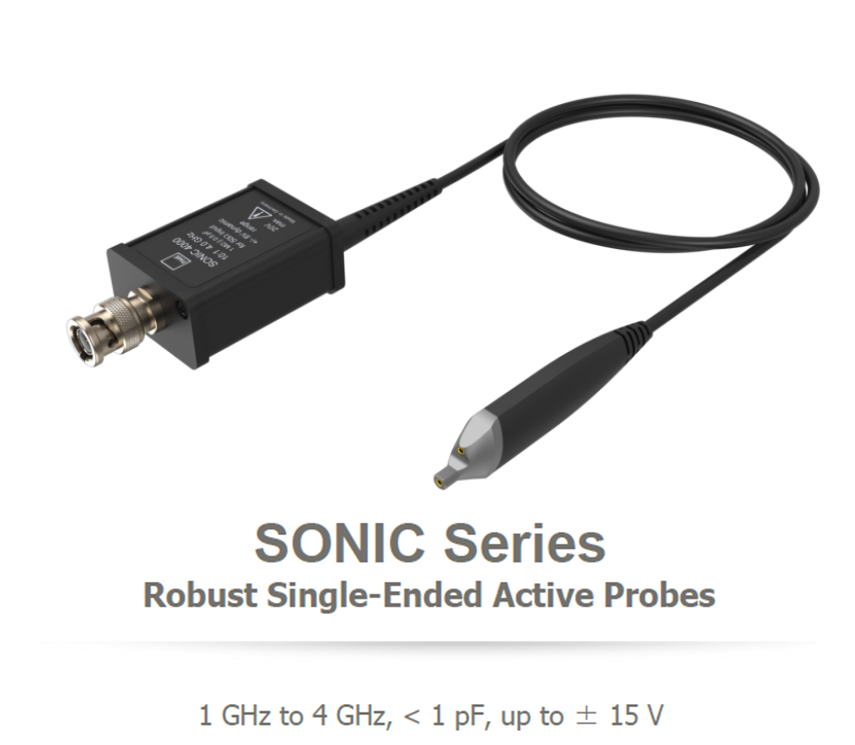

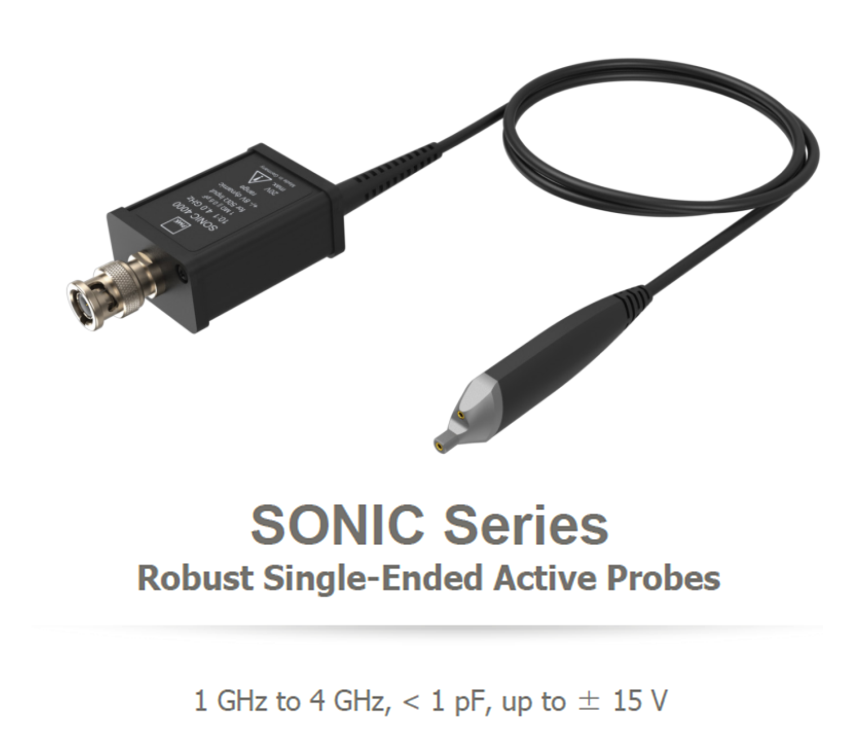

FET PROBE SONIC SERIES (COMING SOON)


■ Frequency bandwidth　Up to 4GHz
■ 3type (1GHz/1.5GHz/2.5GHz/4GHz)
■ Low input capacitance 0.6-0.9pF
■ Ultra Robust Non-destructive Input Voltage
■ Wide Input Dynamic Range
■ Connect with any scope(50ohm input)
■ Optional power supply is needed.

Specification SONIC4000 SONIC2500 SONIC1500 SONIC1000
Attenuation Ratio 10:1 10:1 10:1 10:1
Attenuation Accuracy (DC) * ±1 % ±1 % ±1 % ±1 %
Bandwidth (-3 dB) > 4 GHz > 2.5 GHz > 1.5 GHz > 1 GHz
Input Dynamic Range * ±8 V ±8 V ±15 V ±15 V
Input DC Offset 1) ±12 V ±12 V ±15 V ±15 V
Non-destructive Input Voltage * ±20 V 2) ±20 V 2) ±60 V 2) ±60 V 2)
Input Impedance 3) 2 MΩ || 0.6 pF 2 MΩ || 0.6 pF 1 MΩ || 0.9 pF 1 MΩ || 0.9 pF
Output Impedance 50 Ω 50 Ω 50 Ω 50 Ω
Propagation Delay approx. 7 ns approx. 7 ns approx. 6 ns approx. 6 ns
Zero Offset Error (referred to input) <± 20 μV <± 20 μV <± 20 μV <± 20 μV
