PASSIVE PROBE

FET PROBE MMCX PROBE SMP PROBE SMP PROBE　(Types and Accessories) PML PROBE PML PROBE　(Types) PML PROBE　(Accessories) ENVI PROBE SMP PROBE　(Types and Accessories)

FET PROBE

MMCX PROBE

■ Frequency bandwidth　Up to 1GHz
■ 3types (1GHz/’700MHz/600MHz)
■ MMCX connector probe tip
■ Low input capacitance 0.6-0.9pF
■ Maximum Rated Input Voltage
± 42V peak, 30 V rms, ± 60 V DC
■ Connect with any scope

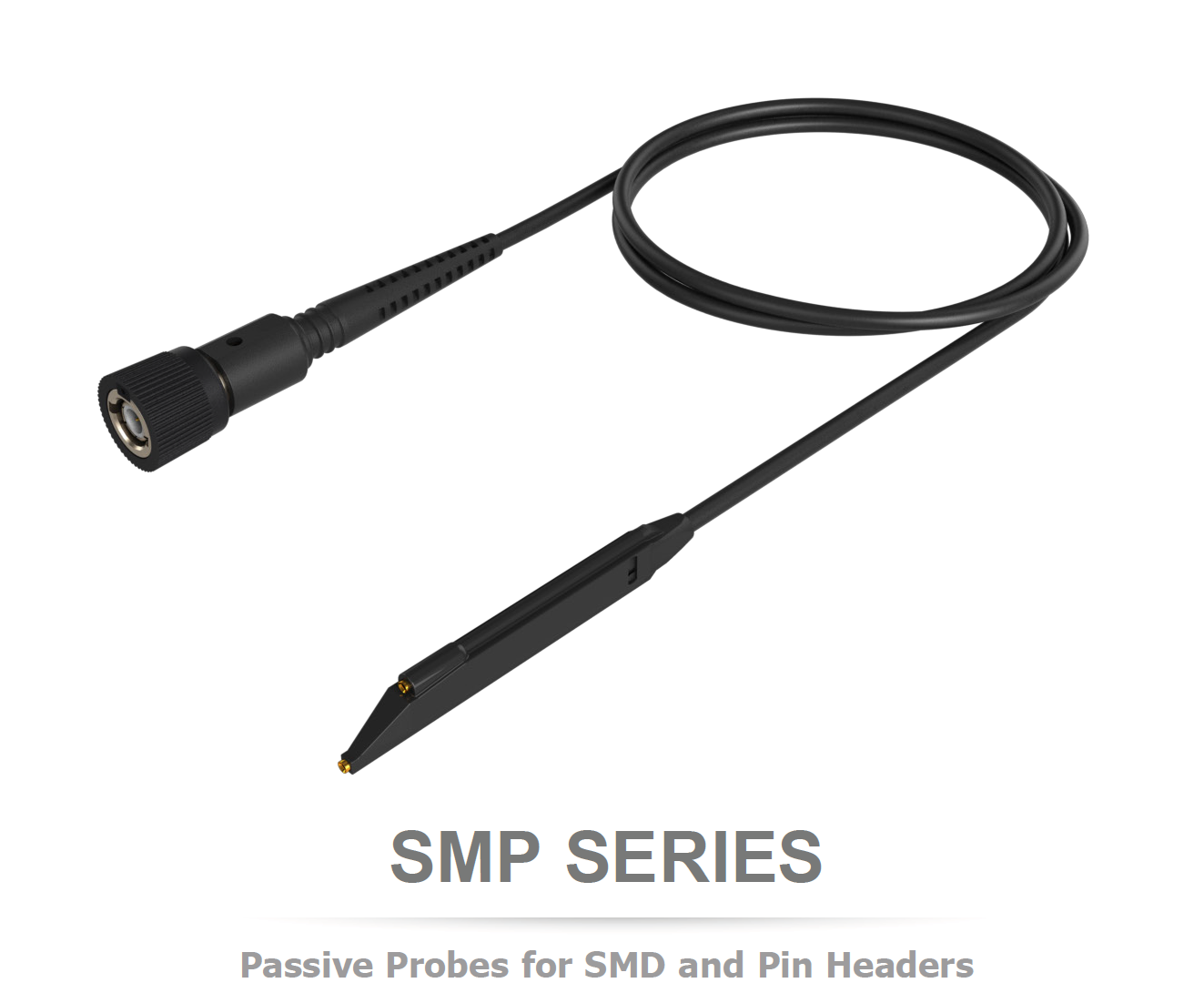

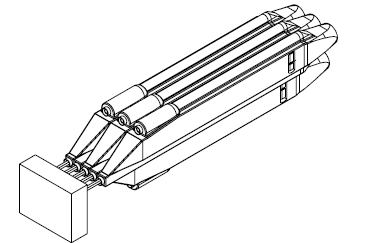

SMP PROBE

■ Passive Probe for 1M Ohm Inputs
■ SMD（Surface Mount Device）　probing
■ Contacts adjacent Pins in 2.54 mm Pitch
■ Easy to stack multiple probes
■ Working voltage max. 30 V rms
■ Interchangeable Spring Tips
■ Bandwidth up to 500 MHz
■ Connect with any scope

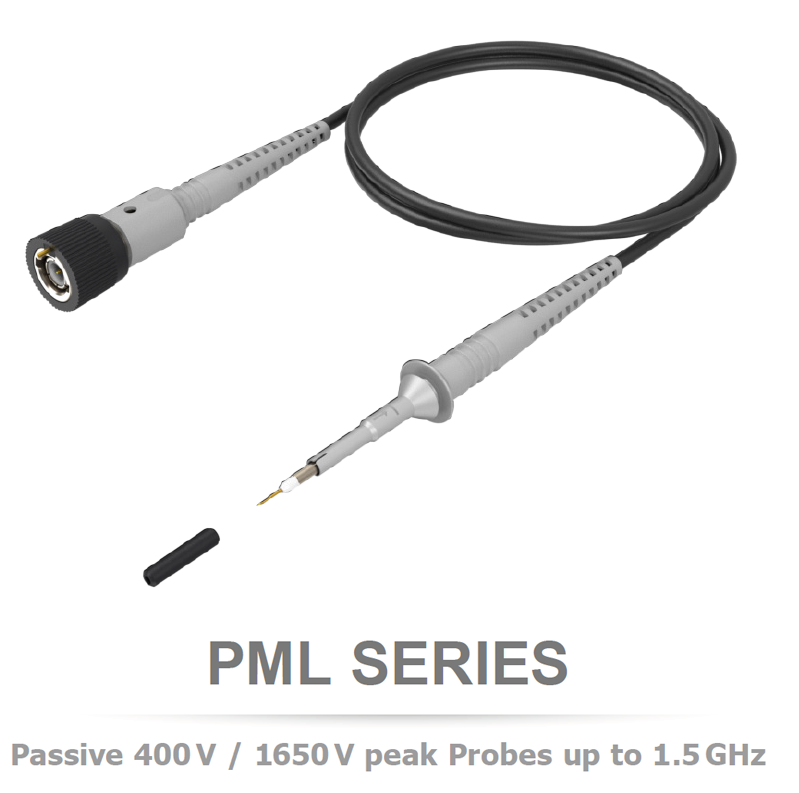

PML PROBE（High-Z）

■ Passive Probe for 1MOhm Inputs
■ Bandwidth up to 500 MHz
■ Working voltage max. 400V / 1650V peak
■ W/O readout is available
■ Connect with any scope

PML PROBE（Low-Z）

■ Passive Probe for 50Ohm Inputs
■ Bandwidth up to 1.5GHz
■ Working voltage max. 30 V rms
■ W/O readout is available
■ Connect with any scope

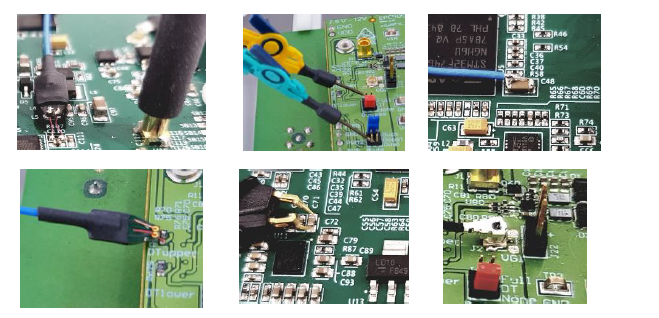

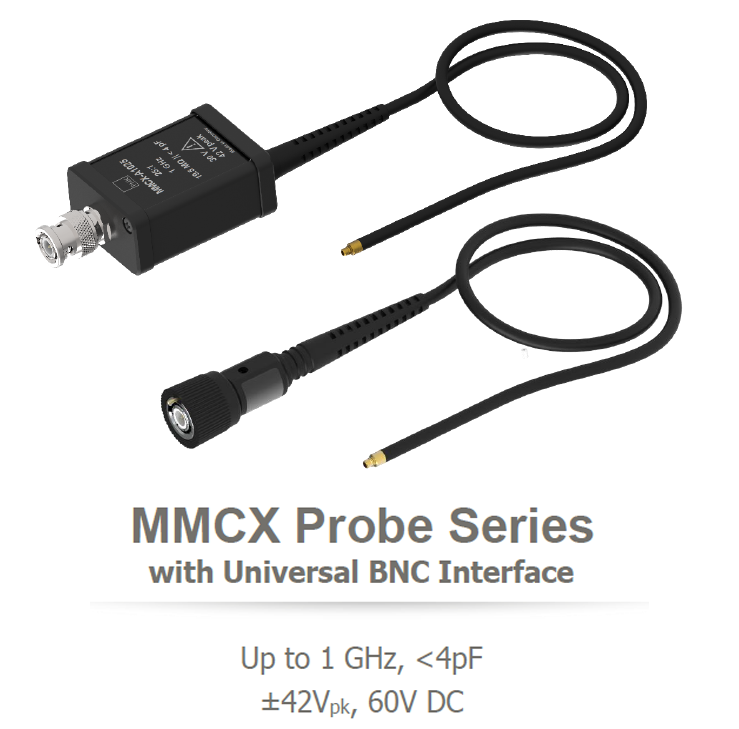

MMCX PROBE

slide_17_img_04.png slide_17_img_03.png

■ Frequency bandwidth　Up to 1GHz
■ 3types (1GHz/’700MHz/600MHz)
■ MMCX connector probe tip
■ Low input capacitance 0.6-0.9pF
■ Maximum Rated Input Voltage
± 42V peak, 30 V rms, ± 60 V DC
■ Connect with any scope

Model Number Attenuation Ratio
(± 2 % at DC)		 Bandwidth
(-3dB)¹		 Rise time
(10%-90%)¹		 Input
Impedance
MMCX-P0725 25:1 > 700 MHz < 570 ps 14.9 MΩ || < 4 pF
MMCX-P0610 10:1 > 600 MHz < 630 ps 10 MΩ || < 8 pF
MMCX-A1025 25:1 > 1 GHz < 425 ps 19.5 MΩ || < 4 pF

SMP PROBE


■ FPassive Probe for 1M Ohm Inputs
■ FSMD（Surface Mount Device）probing
■ FContacts adjacent Pins in 2.54 mm Pitch
■ FEasy to stack multiple probes
■ FWorking voltage max. 30 V rms
■ FInterchangeable Spring Tips
■ FBandwidth up to 500 MHz
■ FConnect with any scope


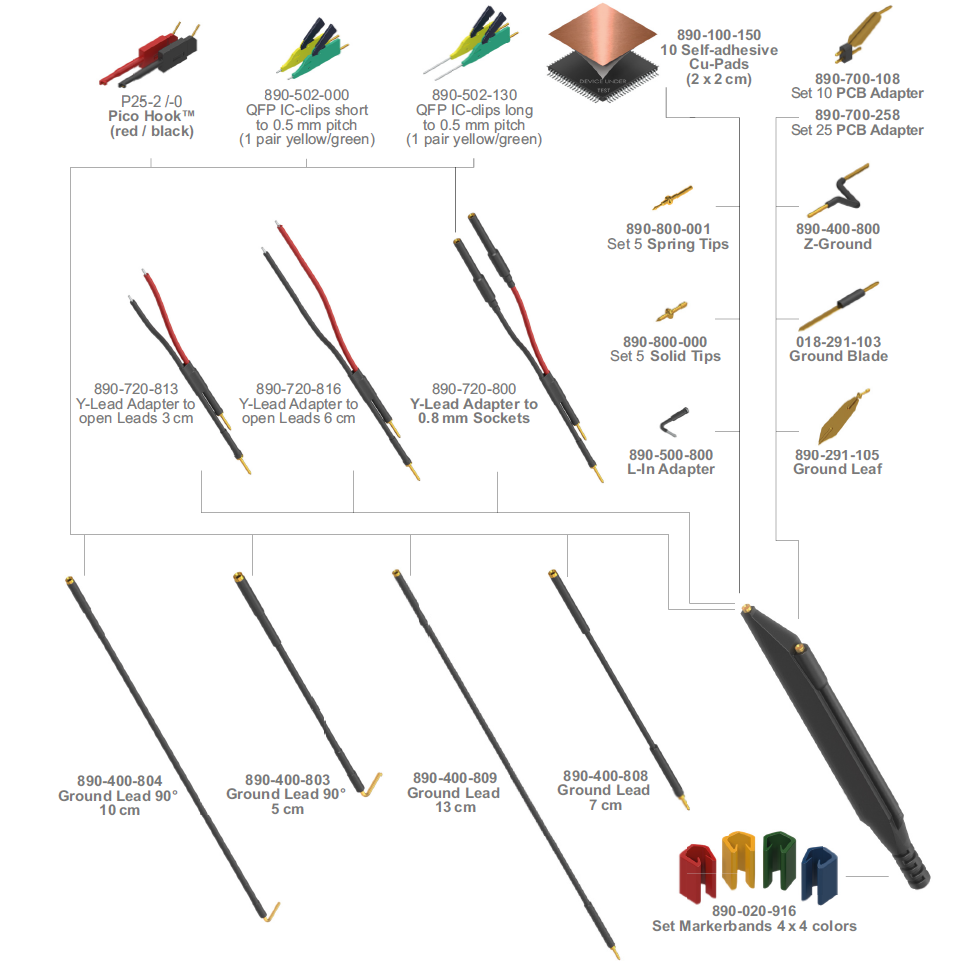

SMP PROBE　(Types and Accessories)

Parameter SMP 011 SMP 021 SMP 051 SMP 101
Attenuation Ratio (±2% at DC) 1 1:1 2:1 5:1 10:1
System Bandwidth (-3dB) 35 MHz 50 MHz 250 MHz 500 MHz
Rise time (10% - 90%) 10 ns 7 ns 1.4 ns 700 ps
Input Resistance (System) (±1%) 1 MΩ 2 MΩ 5 MΩ 10 MΩ
Input Capacitance (System) 45 pF 40 pF 13.5 pF 7 pF
Input Coupling of the Measuring Instrument 1 MΩ AC/DC 1 MΩ AC/DC 1 MΩ AC/DC 1 MΩ AC/DC



PML PROBE


■ FPassive Probe for 1MOhm Inputs (High-Z)
FBandwidth up to 500 MHz
FWorking voltage max. 400V/1650Vpeak
FW/O readout is available
FConnect with any scope


■ FPassive Probe for 50Ohm Inputs (Low-Z)
FBandwidth up to 1.5GHz
FWorking voltage max. 30 V rms
FW/O readout is available
FConnect with any scope

PML PROBE　(Types)

Parameter PML 701 / PML 701-RO PML 751 / PML 751-RO PML 791 / PML 791-RO PML 211 / PML 211-RO PML 311 / PML 311-RO PML 711A / PML 711A-RO PML 712 / PML 712-RO PML 713 / PML 713-RO PML 721 / PML 721-RO
Attenuation Ratio (±2% at DC) 1 1:1 10:1 100:1 10:1 10:1 10:1 10:1 10:1 20:1
System Bandwidth (-3dB) 38 MHz 1.5 GHz 1.5 GHz 200 MHz 350 MHz 500 MHz 350 MHz 250 MHz 500 MHz
Rise Time (10% - 90%) 9 ns 240 ps 240 ps 1.4 ns 1 ns 700 ps 1 ns 1.4 ns 700 ps
Voltage Coefficient (at DC) n.a. n.a. n.a. 0.00025 %/V 0.00025 %/V 0.00025 %/V 0.00025 %/V 0.00025 %/V 0.00025 %/V
Input Resistance (System) (±1%) 1 MΩ (Scope Input) 500 Ω 5 kΩ 10 MΩ 10 MΩ 10 MΩ 10 MΩ 10 MΩ 20 MΩ
Input Capacitance (System) 39 pF + Scope 2 pF 2.6 pF 10 pF 10 pF 9.5 pF 11.5 pF 14.5 pF 5.6 pF
Compensation Range n.a. n.a. n.a. 7 pF - 25 pF 10 pF - 25 pF 10 pF - 25 pF 10 pF - 25 pF 10 pF - 25 pF 7 pF - 20 pF
Input Coupling of the Measuring Instrument 1 MΩ AC/DC 50 Ω 50 Ω 1 MΩ AC/DC 1 MΩ AC/DC 1 MΩ AC/DC 1 MΩ AC/DC 1 MΩ AC/DC 1 MΩ AC/DC

■ PML711A　is typical passive probe.(BASE MODEL)
■ PML712A and PML713A are long cable type of PML711A
■ PML721A is 20:1 type of PML711A. It brings low input capacitance.
■ PML701 is 1:1 type of PML711A.
■ PML751 and PML791 are 1.5GHz type of PML711A. Input resistance is small and connect with 50Ωinput of oscilloscope
■ PML211 and PML311 are low bandwidth type of PML711.

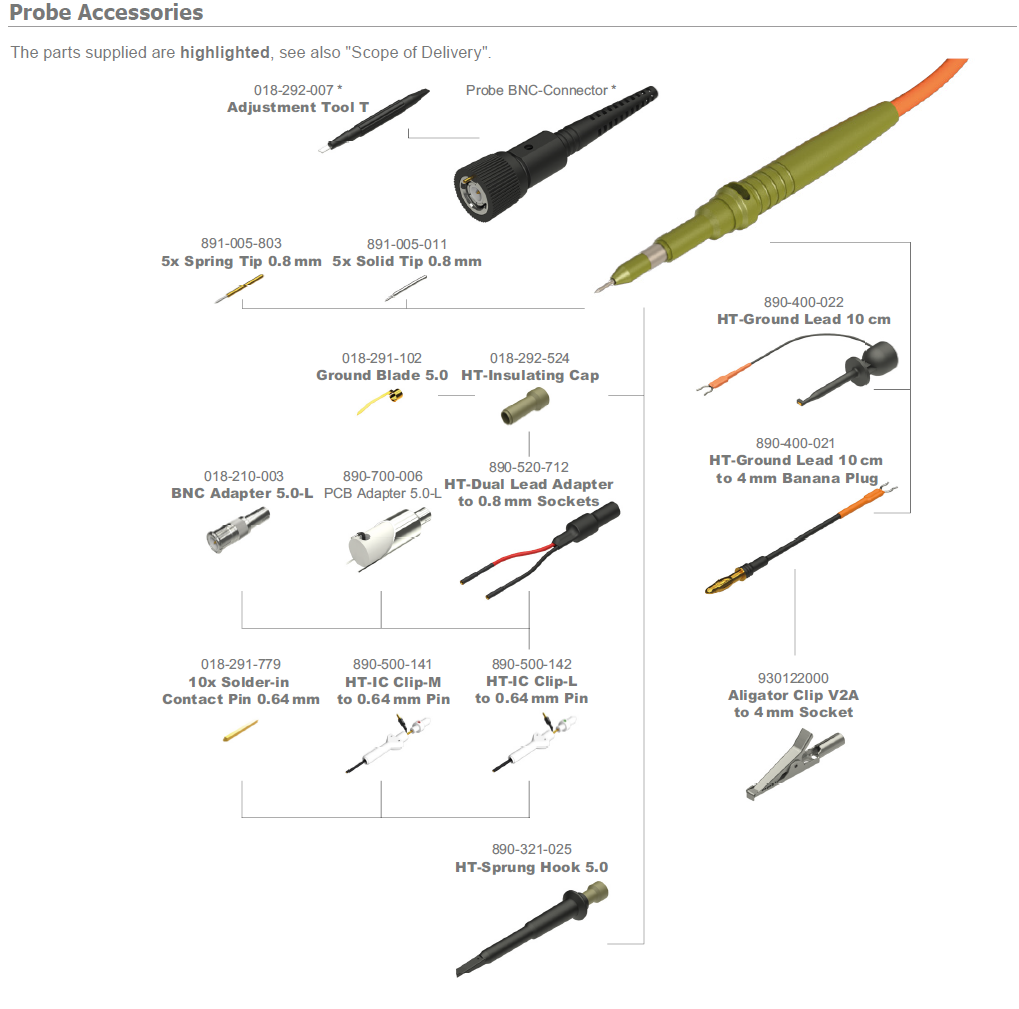

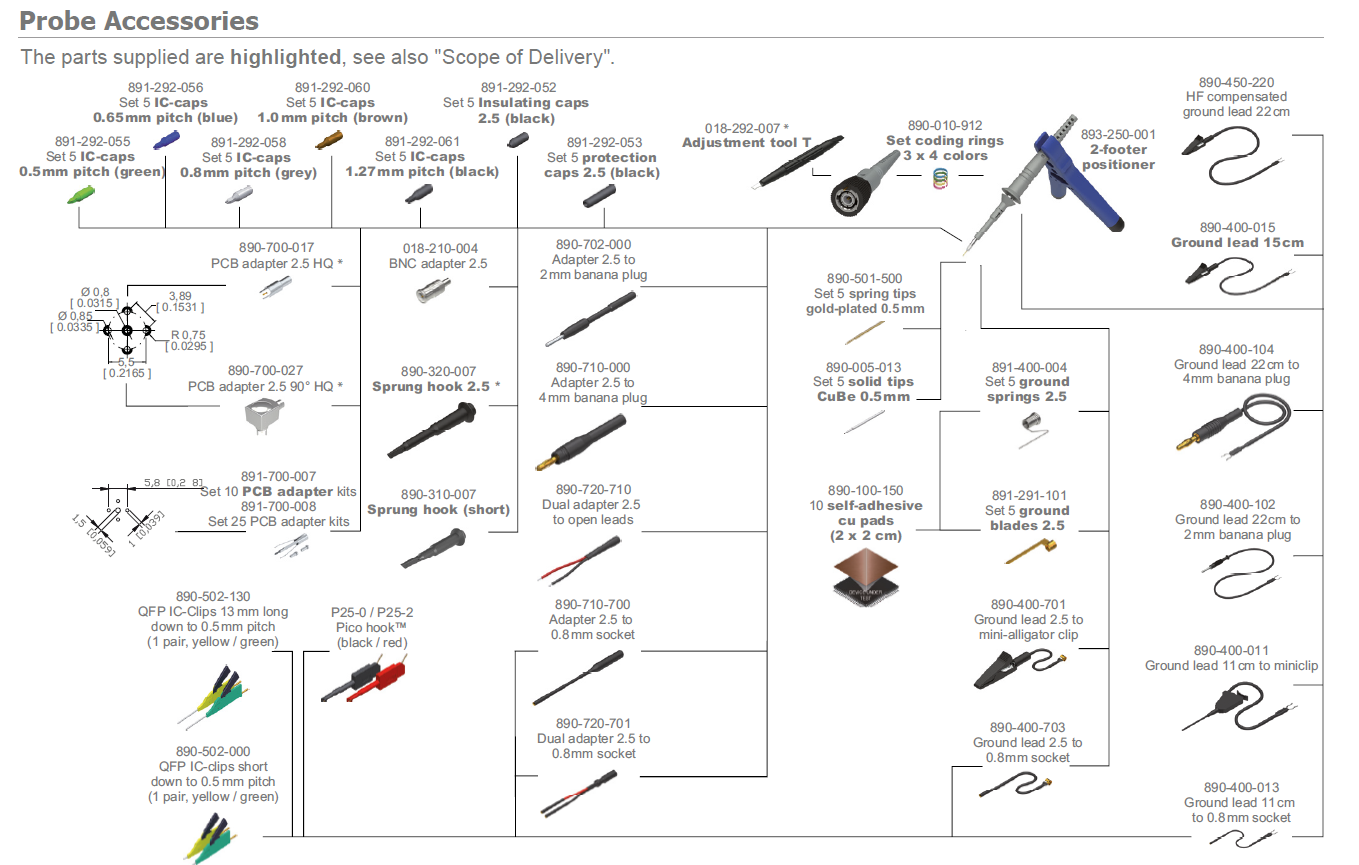

PML PROBE　(Accessories)

slide_22_img_03.png slide_22_img_04.png

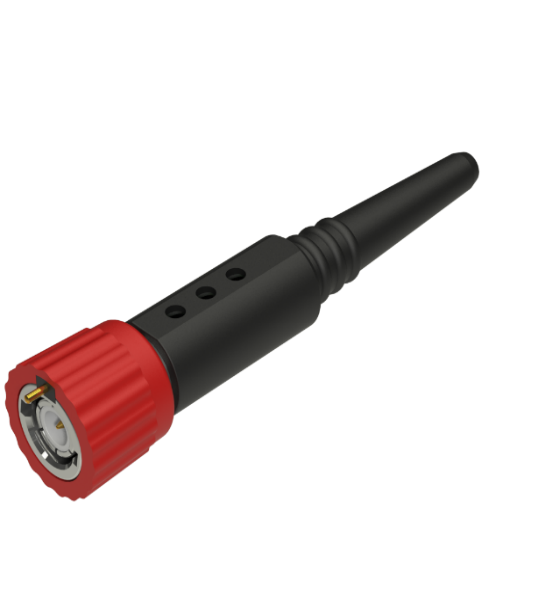

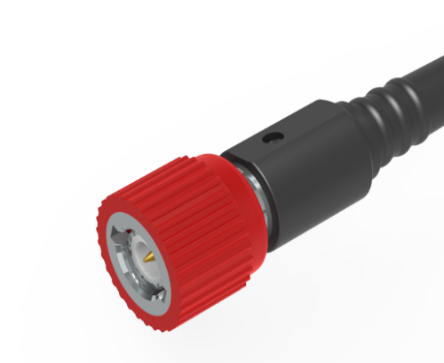

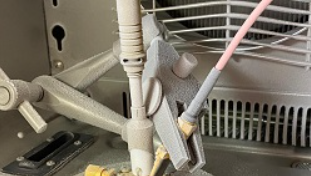

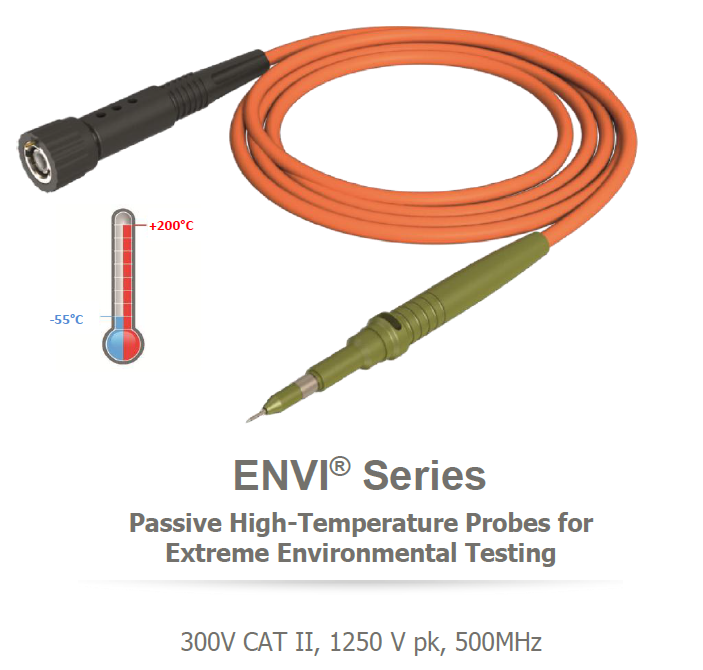

ENVI PROBE


■ Operating temperature range ‐55℃‐200℃
■ 500MHz　bandwidth
■ High input impedance 4.5MΩ
■ Working voltage max. 400V/1650Vpeak
■ Connect with any scope


SMP PROBE　(Types and Accessories)

Electrical Specifications

Do not exceed the specifications. Specifications that are not marked with (*) as guaranteed are typical.

Order Number with Read-Out 835-312-U01
-55°C to 200°C		 835-312-Z01
-55°C to 155°C
Attenuation Ratio
(± 2% at DC)(1)		 10:1 10:1
System Bandwidth
(- 3 dB)		 500 MHz 500 MHz
Rise Time
(10 % - 90 %)		 600 ps 600 ps
Voltage Coefficient
(at DC)		 0.00025 % / V 0.00025 % / V
Input Resistance
(System) (± 1 %)		 4.5 MΩ 4.5 MΩ
Input Capacitance
(System)		 20 pF 20 pF
Compensation Range 10 pF - 25 pF 10 pF - 25 pF
Input Coupling of the
Measuring Instrument		 1 MΩ AC / DC 1 MΩ AC / DC
