FET PROBE TETRIS

FET PROBE　TETRIS FET PROBE　TETRIS (Types and Acce... TETRIS1000 TETRIS1500 TETRIS2500

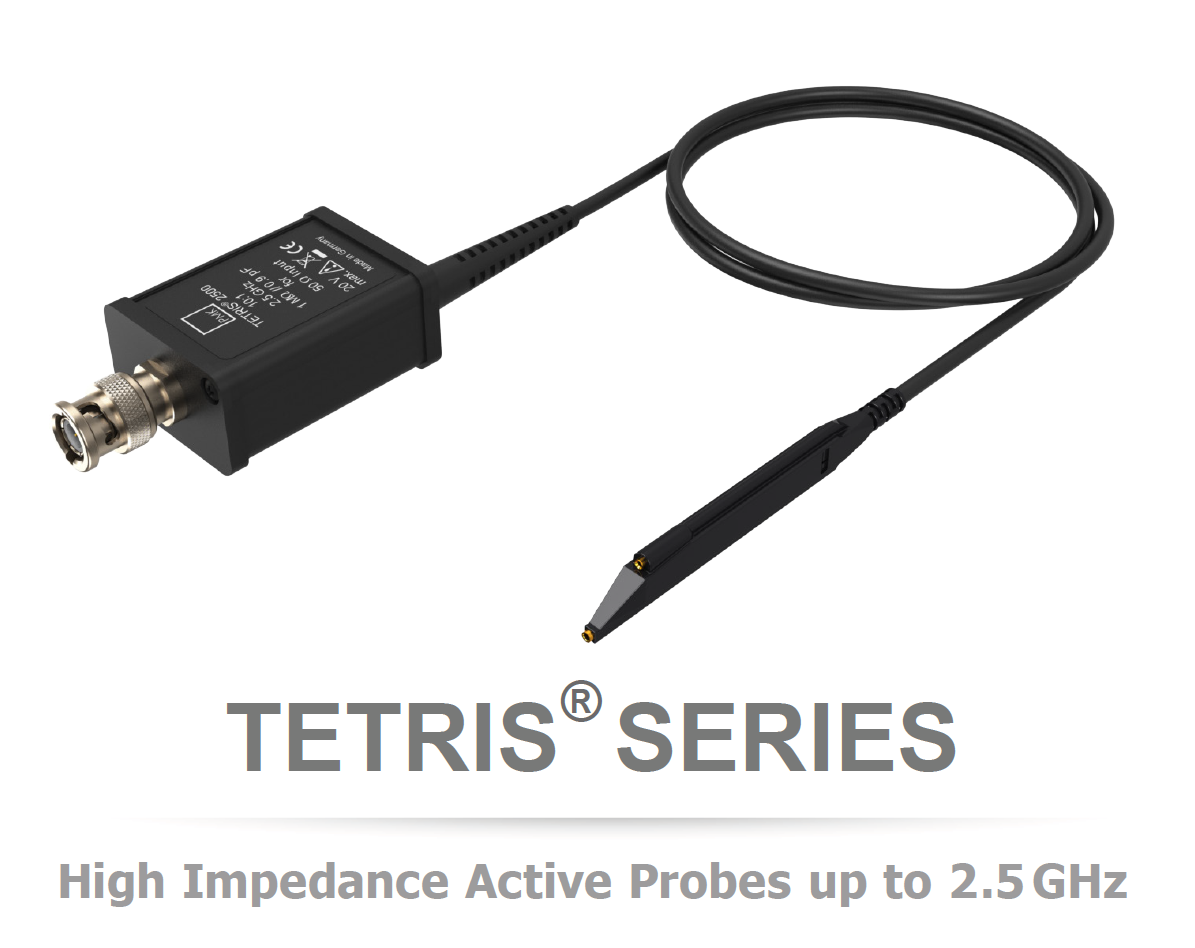

FET PROBE　TETRIS


■ Frequency bandwidth　Up to 2.5GHz
■ 3type (1GHz/1.5Gz/2GHz)
■ Low input capacitance 0.9pF
■ Maximum rated voltage 20V
■ Connect with any scope(50ohm input)
■ AC Adaptor included

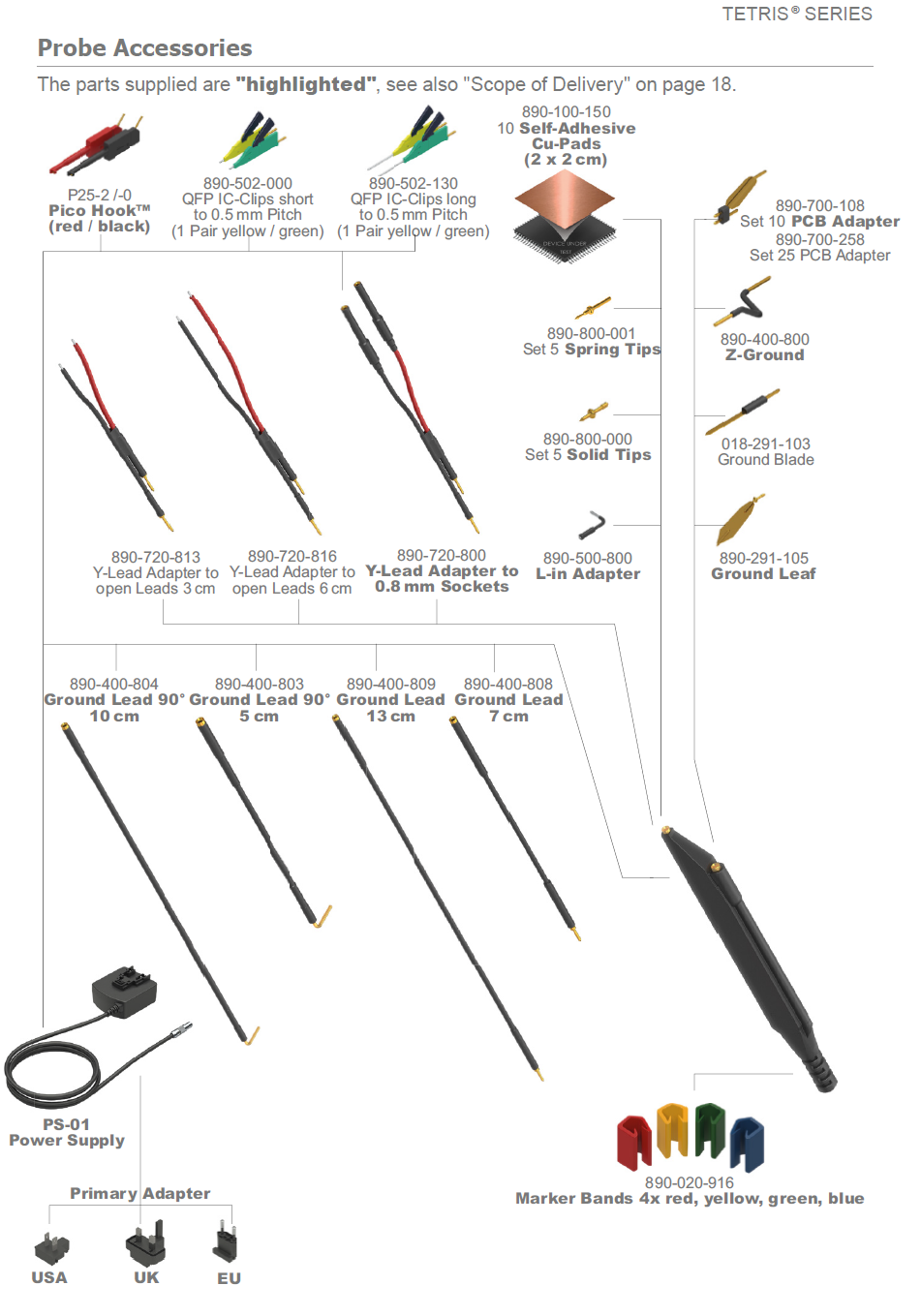

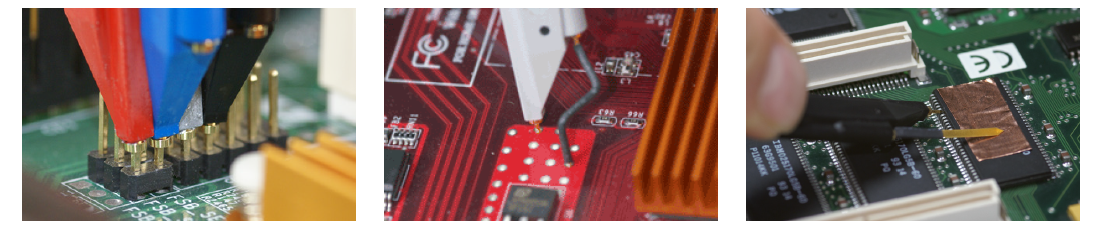

FET PROBE　TETRIS (Types and Accessories)

Electrical Specifications TETRIS® 1000 TETRIS® 1500 TETRIS® 2500
Order-Number 881-000-INT 881-500-INT 882-500-INT
Attenuation Ratio * 10:1 10:1 10:1
Dynamic Measuring Range * ±8V ±8V ±8V
Bandwidth * 1 GHz 1.5 GHz 2.5 GHz
Maximum Rated Input Voltage * 20 V 20 V 20 V
Input Resistance * > 1 MΩ > 1 MΩ > 1 MΩ
Input Capacitance (System) 0.9 pF 0.9 pF 0.9 pF
Oscilloscope Input Coupling 50 Ω AC / DC 50 Ω AC / DC 50 Ω AC / DC

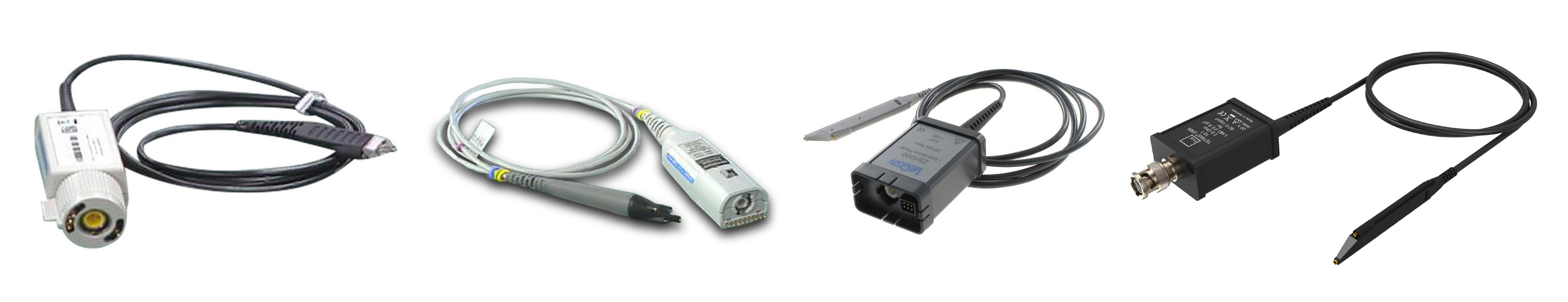

FET PROBE　TETRIS (Competition of TETRIS1000)

■ Frequency bandwidth　1GHz
■ Low input capacitance 0.9pF
■ Connect with any scope(50ohm input)
■ AC Adaptor included
■ ZS1000 = TETRIS1000

MAKER TEKTRONIX KEYSIGHT LECROY PMK
TYPE P6243 N2795A ZS1000 TETRIS1000
BAND WIDTH 1 GHz 1 GHz 1 GHz 1 GHz
INPUT IMPEADANCE 1MΩ // 1pF以下 1MΩ // 1pF 1MΩ // 0.9pF 1MΩ // 0.9pF
VOLTAGE RANGE ±8V ±8V ±8V ±8V
CONNECTIVITY PROBE-BUS PROBE-BUS PROBE-BUS ANY-SCOPE

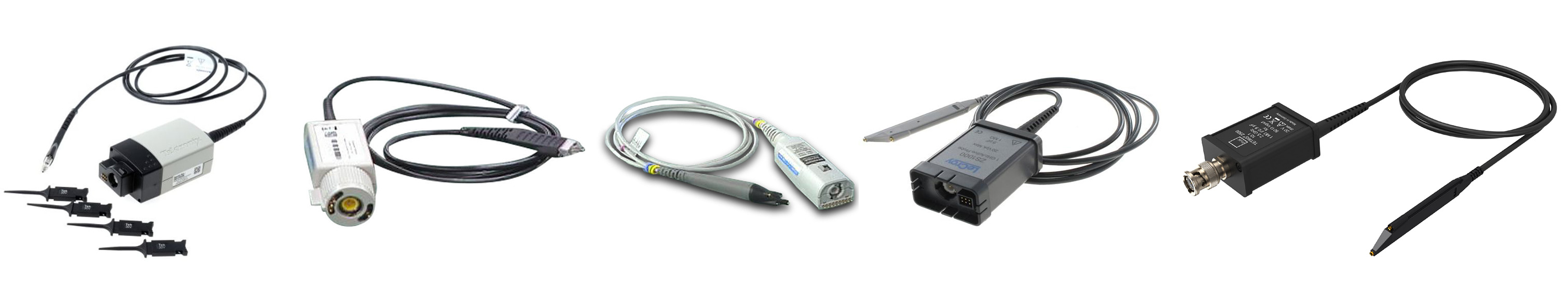

FET PROBE　TETRIS (Competition of TETRIS1500)

■ Frequency bandwidth　1.5GHz
■ Low input capacitance 0.9pF(TETRIS)
■ Connect with any scope(50ohm input)
■ AC Adaptor included
■ ZS1500 = TETRIS1500

MAKER TEKTRONIX TEKTRONIX KEYSIGHT LECROY PMK
TYPE TAP1500 P6245 N2797A ZS1500 TETRIS1500
BAND WIDTH 1.5GHz 1.5GHz 1.5GHz 1.5GHz 1.5GHz
INPUT IMPEADANCE 1MΩ // 1pF以下 1MΩ // 1pF以下 1MΩ // 1pF 1MΩ // 0.9pF 1MΩ // 0.9pF
VOLTAGE RANGE ±8V ±8V ±8V ±8V ±8V
CONNECTIVITY PROBE-BUS PROBE-BUS PROBE-BUS PROBE-BUS ANY-SCOPE

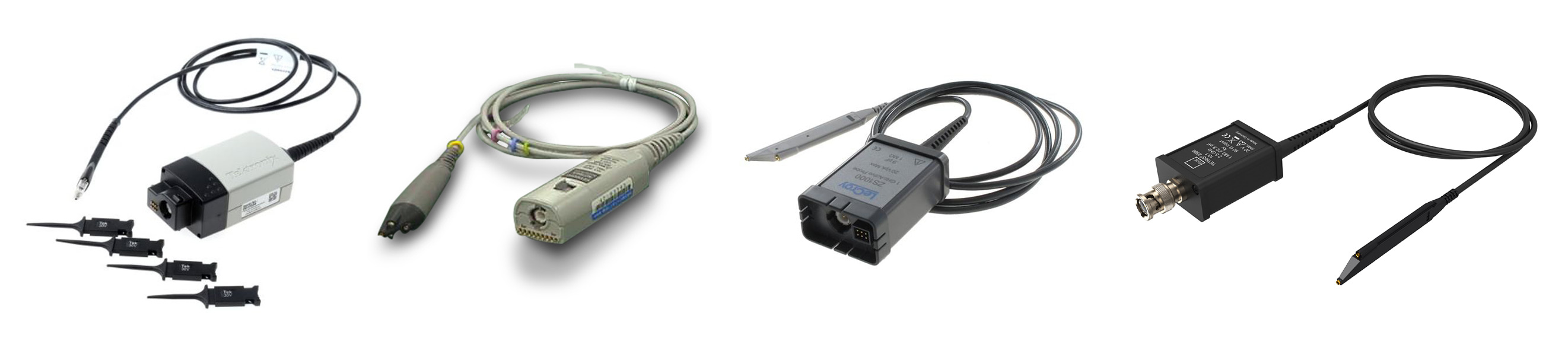

FET PROBE　TETRIS (Competition of TETRIS2500)

■ Frequency bandwidth　2.5GHz
■ Low input capacitance 0.9pF
■ Connect with any scope(50ohm input)
■ AC Adaptor included
■ ZS2500 = TETRIS2500

MAKER TEKTRONIX KEYSIGHT LECROY PMK
TYPE TAP2500 N2796A ZS2500 TETRIS2500
BAND WIDTH 2.5GHz 2GHz 2.5GHz 2.5GHz
INPUT IMPEADANCE 40kΩ // <0.8pF 1MΩ // 1pF 1MΩ // 0.9pF 1MΩ // 0.9pF
VOLTAGE RANGE ±4V ±8V ±8V ±8V
CONNECTIVITY PROBE-BUS PROBE-BUS PROBE-BUS ANY-SCOPE
