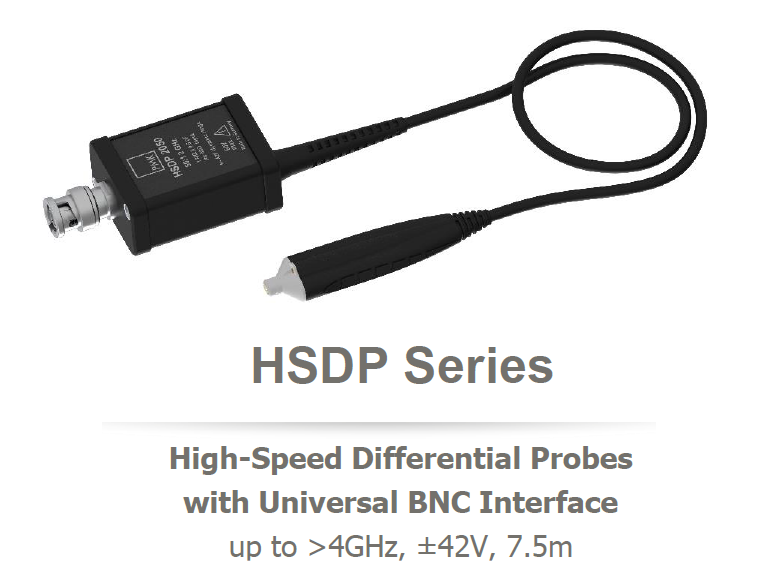

HIGH-SPEED DIFFERENTIAL PROBE HSDP SERIES

HIGH-SPEED DIFFERENTIAL PROBE HS... HIGH-SPEED DIFFERENTIAL PROBE HS... HSDP4000 HSDP2000

HIGH-SPEED DIFFERENTIAL PROBE HSDP SERIES


■ Frequency bandwidth　4GHz
■ Low input capacitance 0.6pF
■ Maximum rated voltage ±42V
■ Ultra Robust Non-destructive Input Voltage
■ Connect with any scope(50ohm input)
■ Optional power supply is needed.

MAKER PMK PMK PMK PMK PMK PMK PMK PMK
TYPE HDSP4010 HSDP2010 HSDP2010L HSDP2025 HSDP2025L HSDP2050 HSDP2050M HSDP2050L
BAND WIDTH >4GHz >2GHz >1.8GHz >2GHz >1.8GHz >2GHz >1.8GHz >1.8GHz
INPUT IMPEADANCE 1MΩ//0.6pF 1MΩ//0.6pF 1MΩ//0.6pF 1MΩ//0.6pF 1MΩ//0.6pF 1MΩ//0.6pF 1MΩ//0.6pF 1MΩ//0.6pF
VOLTAGE RANGE ±8V ±8V ±8V ±20V ±20V ±42V ±42V ±42V
CONNECTIVITY ANY-SCOPE PROBE-BUS PROBE-BUS ANY-SCOPE ANY-SCOPE ANY-SCOPE ANY-SCOPE ANY-SCOPE
Cable Length 1.3m 1.3m 7.5m 1.3m 7.5m 1.3m 3.5m 7.5m

HIGH-SPEED DIFFERENTIAL PROBE HSDP (Types and Accessories)

TYPES

Model Number Attenuation Ratio
(± 2 % at DC)		 Bandwidth
(-3dB)		 Differential Voltage Range
(DC + AC peak) 1		 Differential DC Offset Range
HSDP4010 10:1 > 4 GHz
4.2 GHz (typ.)		 ± 8 V
(16 Vpp)		 ± 12 V
HSDP2010 10:1 > 2 GHz
2.3 GHz (typ.)		 ± 8 V
(16 Vpp)		 ± 12 V
HSDP2010L 10:1 > 1.8 GHz
2.0 GHz (typ.)		 ± 8 V
(16 Vpp)		 ± 12 V
HSDP2025 25:1 > 2 GHz
2.2 GHz (typ.)		 ± 20 V
(40 Vpp)		 ± 30 V
HSDP2025L 25:1 > 1.8 GHz
2.0 GHz (typ.)		 ± 20 V
(40 Vpp)		 ± 30 V
HSDP2050 50:1 > 2 GHz
2.2 GHz (typ.)		 ± 42 V
(84 Vpp)		 ± 60 V

Maximum Non-Destructive

Model Number Maximum Non-Destructive Voltage between
signal and GND (from 10Hz)
HSDP4010 20 V
HSDP2010 20 V
HSDP2010L 20 V
HSDP2025 50 V
HSDP2025L 50 V
HSDP2050 60 V

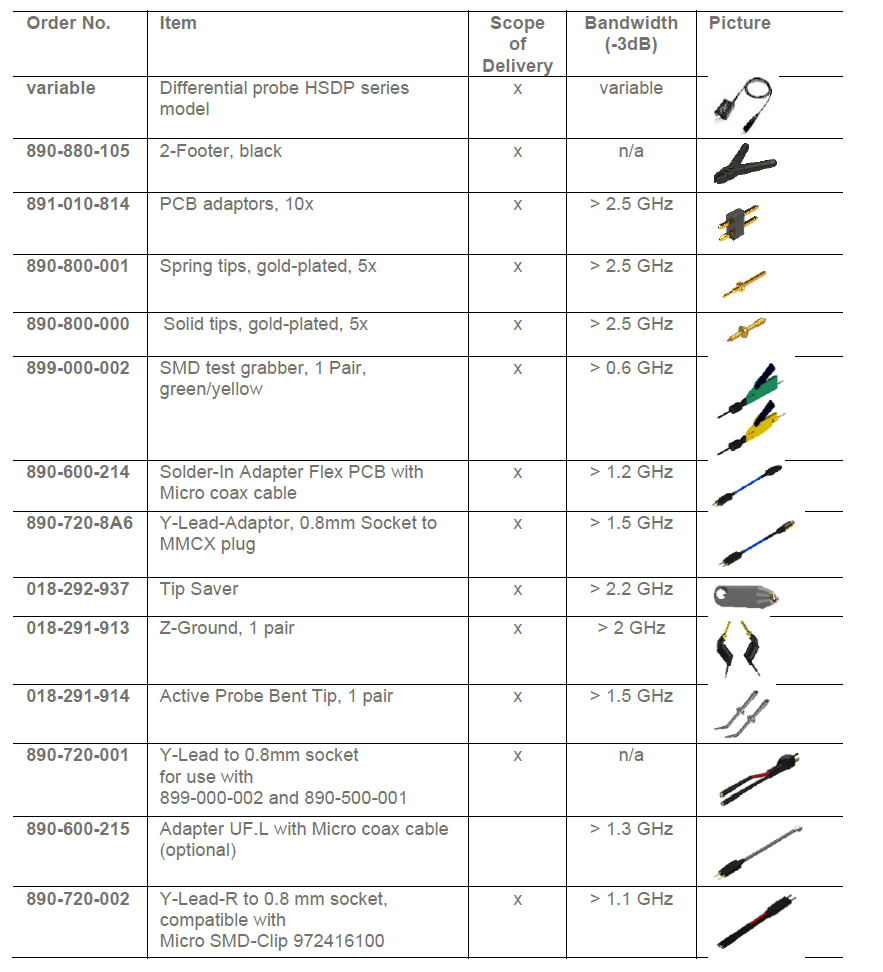

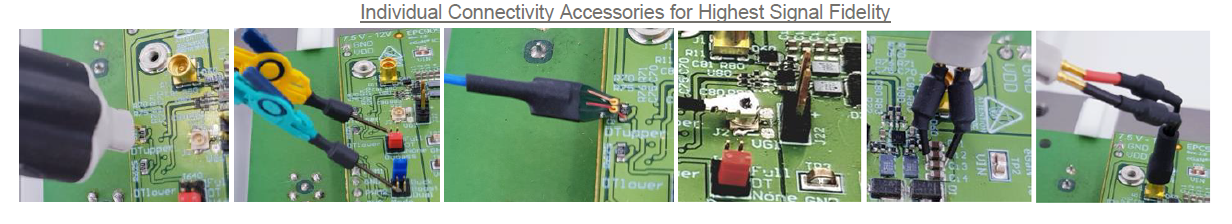

ACCESARIES


HIGH-SPEED DIFFERENTIAL PROBE (Competition of HSDP4000)

■ Frequency bandwidth　＞4GHz（Typ.4.2GHz）
■ Low input capacitance 0.6pF
■ Ultra Robust Non-destructive Input Voltage ±20V
■ Wide Input Dynamic Range ±8v
■ Connect with any scope(50ohm input)
■ Optional power supply is needed.
2ch Power supply PS-02
■ ZS4000 = SONIC4000

MAKER TEKTRONIX TEKTRONIX KEYSIGHT KEYSIGHT PMK
TYPE TDP3500 TDP4500 N2751A N2830A HDSP4010
BAND WIDTH >3.5GHz >4GHz 3.5GHz 4GHz >4GHz
INPUT IMPEADANCE 100kΩ//0.3pF 100kΩ//0.3pF 100 kΩ/0.7 pF 100 kΩ/0.32 pF 1MΩ//0.6pF
VOLTAGE RANGE ±2V ±2V ± 5 V ± 2.5V ±8V
CONNECTIVITY PROBE-BUS PROBE-BUS PROBE-BUS PROBE-BUS ANY-SCOPE

HIGH-SPEED DIFFERENTIAL PROBE (Competition of HSDP2000)

■ Frequency bandwidth　＞2GHz（Typ.2.3GHz）
■ Low input capacitance 0.6pF
■ Ultra Robust Non-destructive Input Voltage ±60V
■ Wide Input Dynamic Range ±42Ｖ
■ Connect with any scope(50ohm input)
■ 3type of cable length.(1.3m/3.5m.7.5m)
■ Optional power supply is needed.
2ch Power supply PS-02

MAKER TEKTRONIX KEYSIGHT LECROY PMK PMK PMK
TYPE TDP1500 N2750A ZD1500 HSDP2010 HSDP2025 HSDP2050
BAND WIDTH >1.5GHz 1.5 GHz 1.5GHz >2GHz >2GHz >2GHz
INPUT IMPEADANCE 200kΩ//1pF 100 kΩ/0.7 pF 120 kΩ/1 pF 1MΩ//0.6pF 1MΩ//0.6pF 1MΩ//0.6pF
VOLTAGE RANGE ±25V ± 5 V ±8V ±8V ±20V ±42V
CONNECTIVITY PROBE-BUS PROBE-BUS PROBE-BUS ANY-SCOPE ANY-SCOPE ANY-SCOPE
